Chord XU series UHF Microphone System

£249.99

All Card payments excepted through our secure payment checkout, or pay with Paypal or Pay in 30 days or over Three payments with Klarna. No fees. Find out more

Qty

XU series UHF Microphone Systems

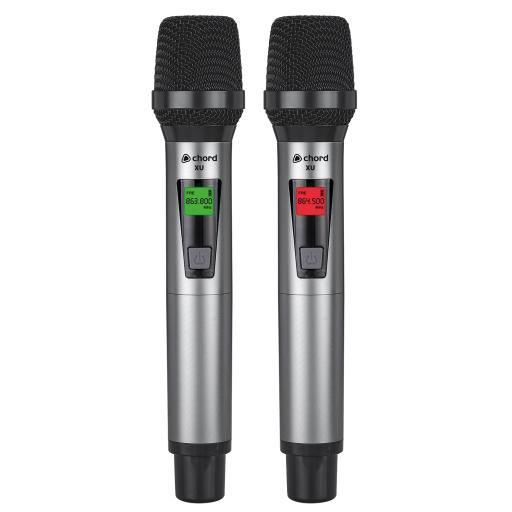

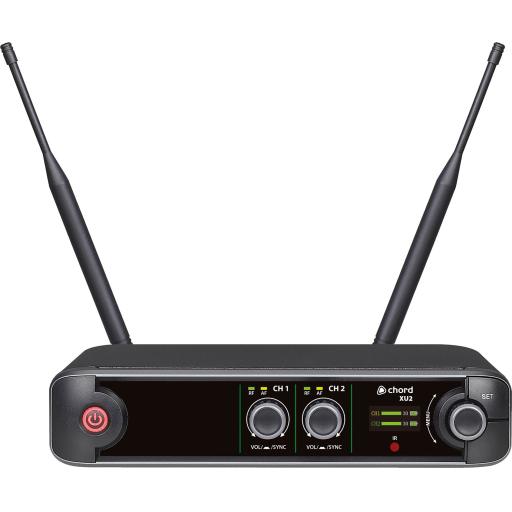

XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 1, 2 or 4 channels of either handheld microphones or bodypack transmitters with a neckband and lavalier mic option. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.

  • Compact half-width rack receiver
  • True diversity antennas with internal distro for reliable reception
  • 10 groups of 9 selectable UHF carrier frequencies
  • Selectable backlight colours for each channel

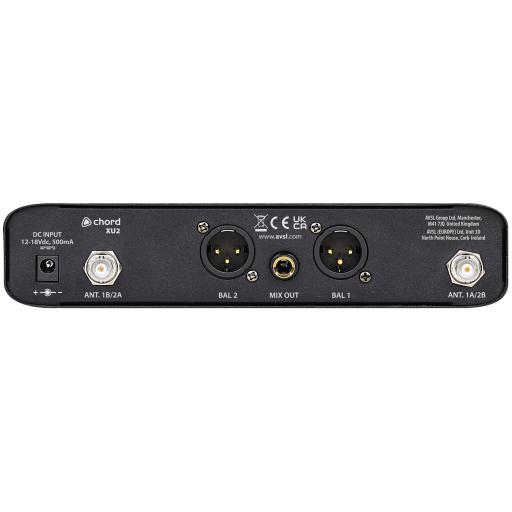

  • 1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output
  • Settings sync I.R. from receiver to transmitters
  • Colour TFT display for settings menu
  • Weight : lavalier microphoneN/A
  • Dimensions : lavalier microphoneN/A
  • Weight : neckband microphoneN/A
  • Dimensions : neckband microphoneN/A
  • Weight : beltpack transmitterN/A
  • Dimensions : beltpack transmitterN/A
  • Weight : handheld transmitter246g (no battery)
  • Dimensions : handheld transmitter258 x 47mmØ
  • Power supply12-18Vdc, 500mA (mains adaptor supplied)
  • Batteries2 x AA per transmitter
  • Carrier frequencies823-832 / 863-865MHz
  • Wireless rangeUp to 60m
  • Antenna connection2 x BNC
  • Dimensions : receiver205 x 205 x 44mm
  • Weight : receiver755g
