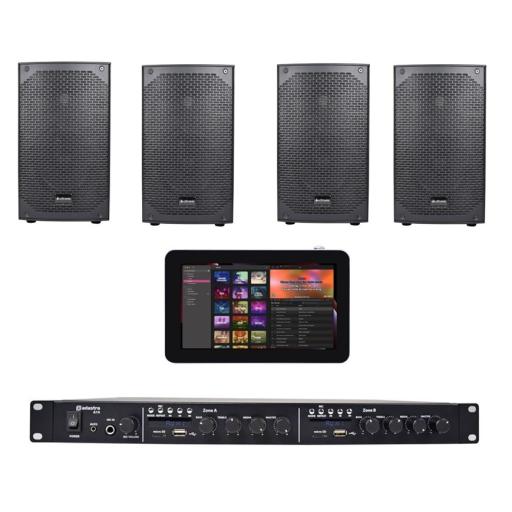

This fantastic duarable package comes with the 14" android touch screen & 4 x speakser with wall brackets , both connectimg into the Adastra audio mixer, the mixer has a spare audio input so why not connect youir sky TV &

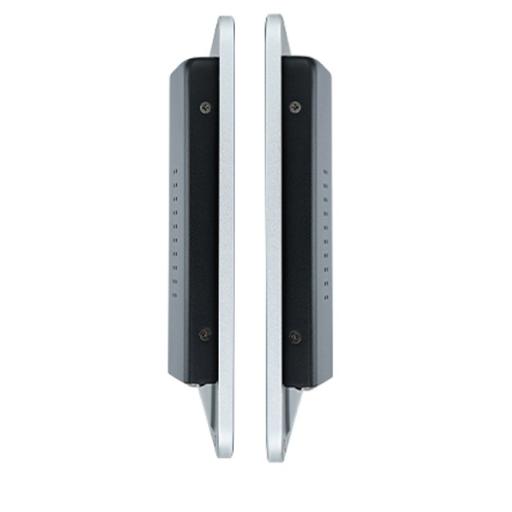

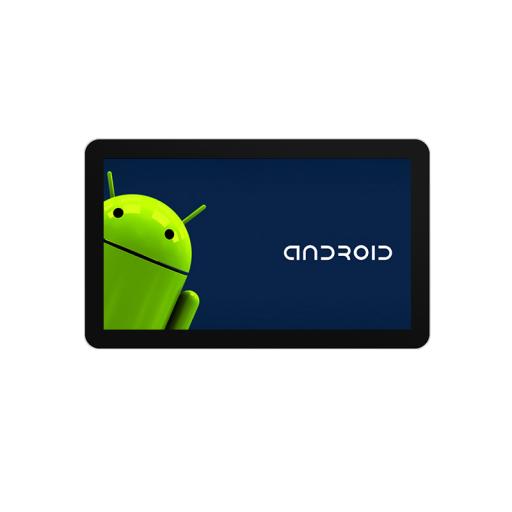

Touch screen info

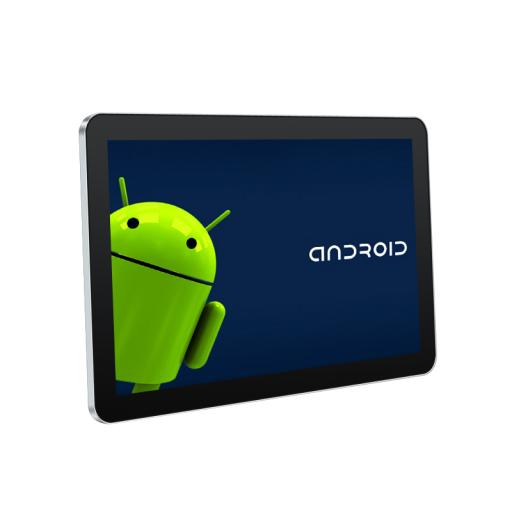

Welcome to our versatile Blueaser 14 inch Touch screen tablet, simply HDMI to your TV, audio out to your sound system, if you dont wish to subscride to an app simply go on youTube or Newpipe and stream songs free of subsription. The tabet can also be used as a music player through subsription apllication such as Spotify + Napster Amazon music ECT,
Features
- 15,000-hour extended life LCD display
- Surface IP65 waterproof
- Googleplay store
- Android software
- Surface IP65 waterproof

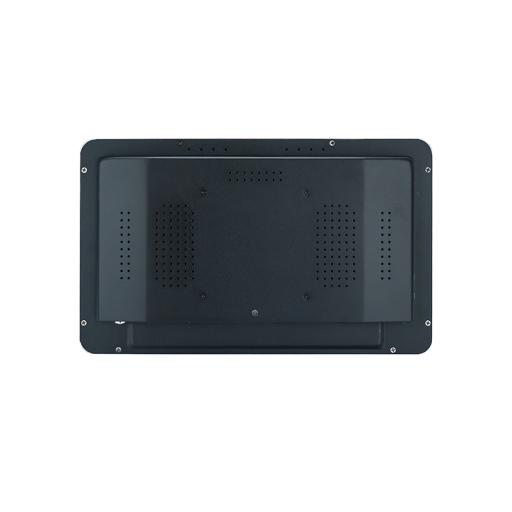

- Wall mounted/desktop stand/embedded etc
- Screen diagonal 14 inch
- Touch technology PCAP

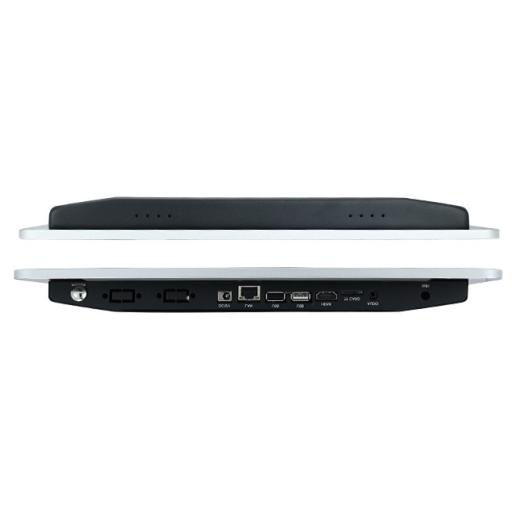

- RJ45 Ports
- Audio in&out
- HDMi Output
- Power output 10-240V AC 50/60Hz
- size 34.93（W）*21.4（H）*3.1（T）
Audio mixer details

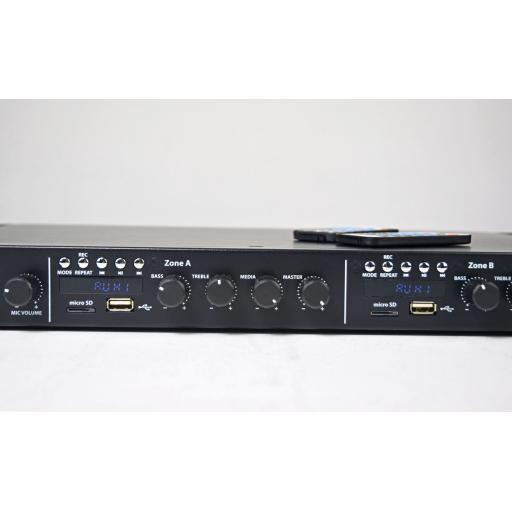

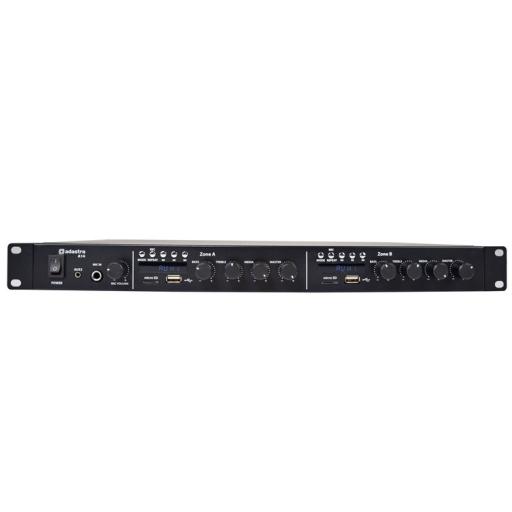

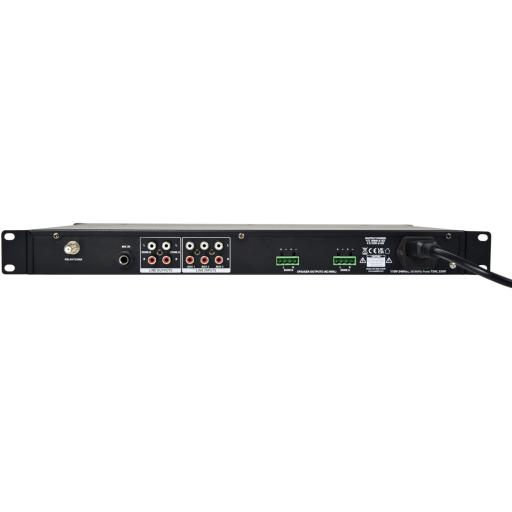

A14 Dual Stereo Mixer-Amplifier 4 x 160W Comprehensive 1U PA amplifier with 2 independent stereo zones and a global microphone input. Each zone has an independent audio player module which can select between USB / microSD mp3 player, FM tuner, Bluetooth receiver, 2 stereo line inputs (rear panel RCA) and another line input on the front panel (3.5mm). Playback can be controlled from the front panel or by the supplied I.R. remote control handsets. In addition, each player has an Aux 4 setting allowing it to connect to the other player module, meaning either one of these players can be used for both zones if needed. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are connected using removable Euroblock screw terminals, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels. The housing is 1U 19" rack-mountable and is supplied with front and rear brackets, which may be rotated for mounting flat against a wall or under a counter top. Overall, a complete solution for completely independent background music, audio visual and voice announcements in venues with 2 separate areas.
- 2 completely independent or linkable audio players
- USB / microSD mp3 audio playback on each player
- Inbuilt FM radio tuners
- Dual Bluetooth wireless receivers
- Microphone input for voice announcements to both zones
- Dual 2 x 160W class-D power amplifiers
- Power supply230Vac, 50Hz (IEC)
- Output power : 4 Ohms2 x 2 x 160Wrms
- Output power : 8 Ohms2 x 2 x 80Wrms
- Inputs : Mic6.3mm (front and rear panel in parallel)
- Inputs : AuxAux 1-3 (L+R RCA rear panel) + Aux 3 also 3.5mm on front panel
- Audio sourceDual internal USB/microSD player / FM tuner / Bluetooth receiver
- Antenna connectionF-type (FM tuner)
- Dimensions482 x 285 x 44mm (1U)
- Weight2.933kg

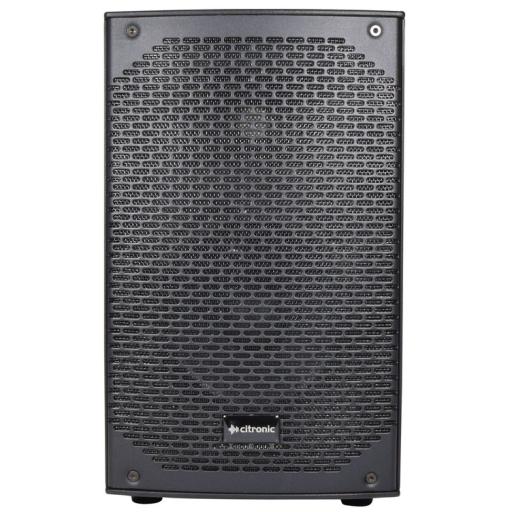

Speaker specifications
CAB Series Passive Cabinets

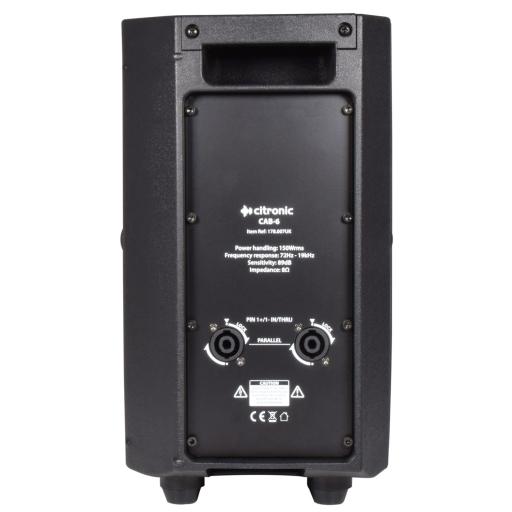

Full-range speaker cabinets housed in a compact and lightweight moulded PP enclosure. Custom designed low frequency woofers are paired with titanium compression drivers for a powerful yet balanced sound delivery. Each cabinet is fitted with top and side carrying handles and a 35mm pole mount socket. Connection from an amplifier is via Speakon lead to either of 2 sockets on the rear panel. Compact, lightweight and yet very capable sound reinforcement cabinets.
- Integral top and side carry handles
- 35mm pole mount
- 2 x SPK sockets
- Weight5.2kg
- Dimensions362 x 215 x 208mm
- Crossover frequency3.5kHz
- SPL max.108dB
- Sensitivity @ 1W/1m89dB
- Frequency response72Hz - 19kHz
- HF driver25mmØ (1.00") Ti CD
- Voice coil38mmØ (1.50")
- LF driver165mmØ (6.5")
- Power handling : rms150W
- Housing materialInjection moulded polypropylene
- Impedance8 Ohms (LF+HF combined)
- Dispersion90° x 60°
- Connectors2 x SPK socket
